Ford "FUSION" hybrid
| Gas Engine Specifications (Hybrid Model) | |
| Drive Type | Front-Wheel Drive |
| Engine type | 2.5L Atkinson-Cycle I-4 Hybrid Engine |
| Transmission type | Electronic Continuously Variable (e-CVT) |
| Exhaust | Single Chrome-Tipped with Catalytic Converter |
| Horsepower (SAE net@rpm) | 156@6,000 |
| Torque (lb.-ft.@rpm) | 136@2,250 |
| Compression ratio | 12.3:1 |
| Valve lifters | Roller-Finger Followers (Hydraulic) |
| Fuel delivery | Sequential Multi-Port Electronic Fuel Injection |
| Fuel recommended | Unleaded Regular |
| Fuel economy (EPA-estimated miles per gallon) | 41 city/36 hwy/39 combined |
| Electric Motor Specifications (Hybrid Model) | |
| Motor type | Permanent Magnet AC Synchronous Motor |
| Battery | 275-Volt Nickel-Metal-Hydride (NiMH) |
| Battery Power (hp) | 35 (26 kW) |

Hybrid Performance
An electric motor powered by an innovative nickel-metal-hydride (NiMH) battery. And the 2.5L Atkinson-cycle I-4 gas engine. The combined energy of these two sources supplies the power for the Fusion Hybrid. A full hybrid, Fusion can start off from a complete stop and travel at light to normal acceleration up to 47 miles per hour on electric power alone, with no fuel used. The I-4 gas engine kicks in extra power when needed, such as in passing or merging situations, and provides the main source of power above 47 mph. Both the gas engine and the electric motor combine to deliver a maximum 191 net horsepower.

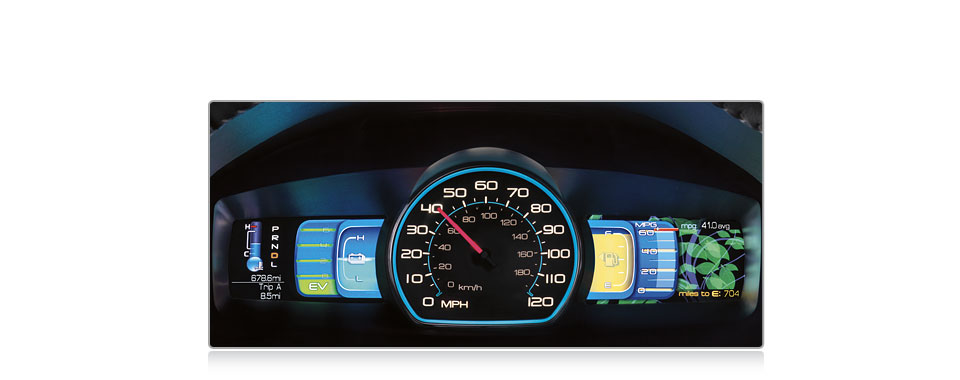

The exclusive dual LCD SmartGauge™ with EcoGuide* is an innovative gauge cluster that provides real-time information to help you get the most efficiency from your Fusion Hybrid. SmartGauge™ with EcoGuide uses dual liquid crystal display (LCD) screens on either side of the center-mounted speedometer. A tutorial built into the display lets you choose one of four data screens for the level of information you want — Inform, Enlighten, Engage or Empower — and explains your options within each. Steering wheel-mounted controls make it all easy. All levels can indicate instant fuel economy; fuel economy history; odometer; engine coolant temperature; plus trip data including fuel economy, time-elapsed fuel economy and miles to empty. Watch the display grow leaves when you drive efficiently. Or watch them fade when you don't. More leaves = more mpg. This green motivator works during any of the four display modes.
Braking System
When you apply the brakes in a conventional vehicle, kinetic energy is lost to heat due to friction. During braking in the Fusion Hybrid, however, the regenerative braking system recovers over 90 percent of this energy that is normally lost and sends it back to the battery pack to be stored for later use. Not only is regenerative braking efficient, but it also helps minimize wear on the brake pads, lowering the cost of maintenance.





The exclusive dual LCD SmartGauge™ with EcoGuide* is an innovative gauge cluster that provides real-time information to help you get the most efficiency from your Fusion Hybrid. SmartGauge™ with EcoGuide uses dual liquid crystal display (LCD) screens on either side of the center-mounted speedometer. A tutorial built into the display lets you choose one of four data screens for the level of information you want — Inform, Enlighten, Engage or Empower — and explains your options within each. Steering wheel-mounted controls make it all easy. All levels can indicate instant fuel economy; fuel economy history; odometer; engine coolant temperature; plus trip data including fuel economy, time-elapsed fuel economy and miles to empty. Watch the display grow leaves when you drive efficiently. Or watch them fade when you don't. More leaves = more mpg. This green motivator works during any of the four display modes.
Braking System
When you apply the brakes in a conventional vehicle, kinetic energy is lost to heat due to friction. During braking in the Fusion Hybrid, however, the regenerative braking system recovers over 90 percent of this energy that is normally lost and sends it back to the battery pack to be stored for later use. Not only is regenerative braking efficient, but it also helps minimize wear on the brake pads, lowering the cost of maintenance.
Earth-friendly seating fabric in the Fusion Hybrid is made from 85 percent post-industrial materials - polyester fibers that would otherwise have ended up in landfills.




Additional Information
- manufacturer: "FORD" / USA / Price: about 28 000 $
